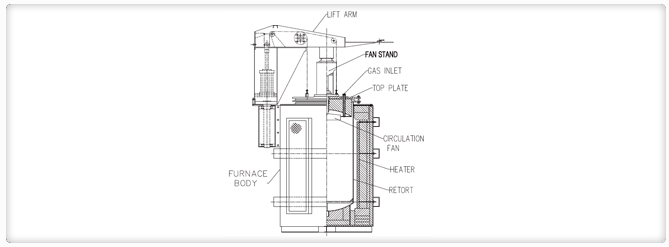

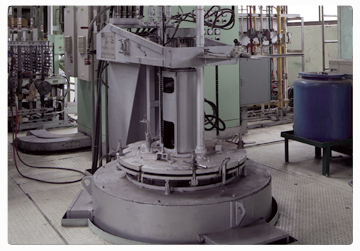

PIT TYPE

  • Various heat-treating methods that are processed in hermetically sealed, inner-retort pit-type furnace.
  • High throughput with fair quality for small sizes at a value price. Suitable for heat treating shaft type of work piece.

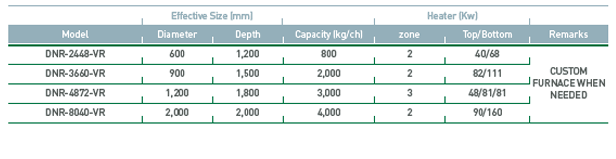

Standard specifications of pit type carburizing furnace

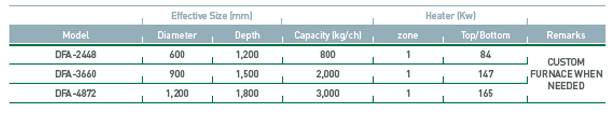

Standard specifications of pit type tempering furnace

FURNACE FEATURE

  • + Typical PIT TYPE
  • + Easy quality control, High reliability
  • + Effective Insulation type
  • + High power agitation for temp uniformity
  • + Highly stabilized process

PROCESS OPTIONS

  1. + Carburizing, Carbonitriding, Bright Quenching, Annealing etc.

PRODUCTS

  1. + LARGE SHAFT, GEAR, CAST or FORGED ITEMS, PRESS ITEMS etc.
